Excavator Monitor Display Panel

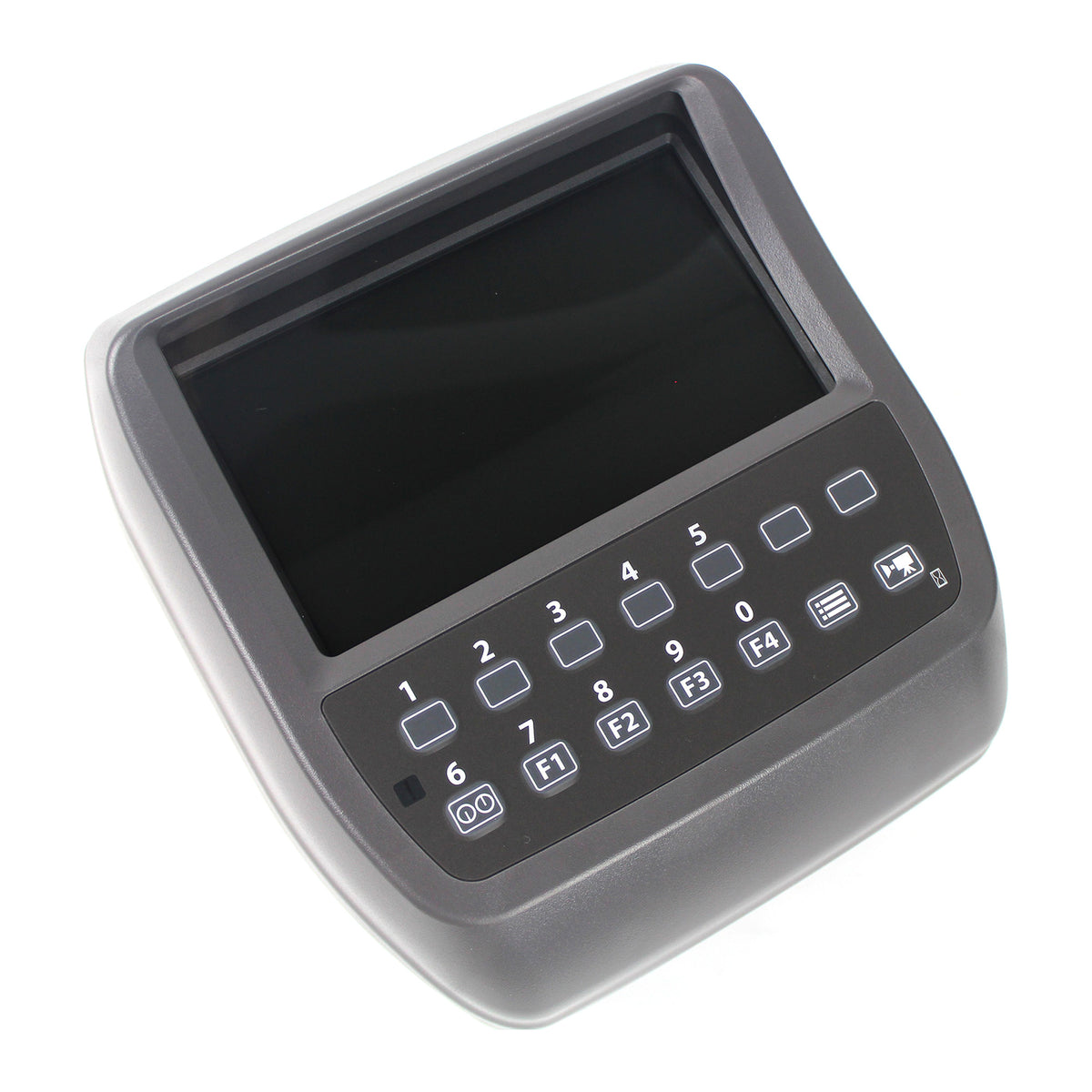

Monitor Display 4684077 4652262 4653775 for Hitachi ZX160LC-3 ZX200-3 ZX240-3 ZX300-3 Excavator

Name: Monitor Display 4684077 4652262 4653775 for Hitachi ZX160LC-3 ZX200-3 ZX240-3 ZX300-3 Excavator
Brand: XAVORNIK
SKU: MON-HIT-ZX3-4684077
Price: 799.00 USD
Availability: InStock

USD $799.00

SKU MON-HIT-ZX3-4684077 Reference 4684077, 4652262, 4653775, 4631127, 4684076, 4653...

Available to order Preparation: 3–7 business days

Item priceUSD $799.00

US DDP shippingUSD $62.99

Estimated delivered totalUSD $861.99

Duties included. Taxes, if applicable, are calculated at checkout. Final amount is confirmed at checkout.

Programmed ZAXIS-3 replacement monitor using the 4684077 / 4652262 / 4653775 family; exact label, connector and machine configuration must match.

12-Month Limited WarrantySupport after delivery

Fitment VerificationPart number & machine details

Worldwide ShippingOptions at checkout or quote

Reference part number: 4684077, 4652262, 4653775, 4631127, 4684076, 4653780, 4646400
XAVORNIK SKU: MON-HIT-ZX3-4684077

Verified product data

Fitment & package details

Machine models: Hitachi ZX160LC-3 | ZX170-3 | ZX180LC-3 | ZX200-3 | ZX210-3/ZX210LC-3 | ZX225US-3 | ZX240-3 | ZX250-3 | ZX300-3 | ZX330-3 | ZX350-3 | selected John Deere 75D | 85D | 120D | 135D | 160DLC | 200D/200DLC | 240DLC | 350DLC only when the original monitor number matches
Engine models: Hitachi ZAXIS-3 Tier-3 electronic/common-rail diesel family | exact engine varies by machine/market (examples include Isuzu AI-4JJ1X | AI-4HK1X and 6HK1-family applications)
Condition: New aftermarket replacement
Package: 1

Product information

Product details

XAVORNIK replacement monitor display for selected Hitachi ZAXIS-3 excavators using the 4684077-series monitor family.

Typical application references include ZX160LC-3, ZX170-3, ZX180LC-3, ZX200-3, ZX240-3, ZX300-3, ZX350-3 and selected Deere D-series machines. The same machine model can have different display hardware or programming by serial range and market.

Before ordering, confirm the original monitor label, complete model, machine serial/nameplate, front/rear appearance and connector layout. Program is matched only to a confirmed application.

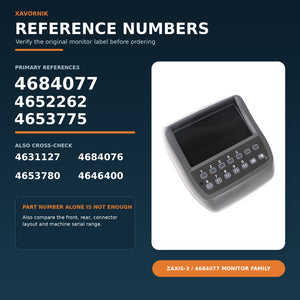

Reference Numbers

4684077
4652262
4653775
4631127
4684076
4653780
4646400

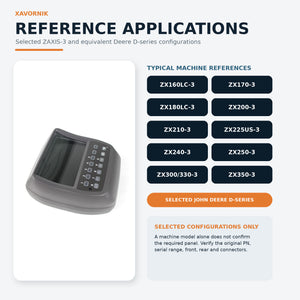

Compatible Models

View the complete model list

Hitachi ZX160LC-3, ZX170-3, ZX180LC-3, ZX200-3, ZX210-3/ZX210LC-3, ZX225US-3, ZX240-3, ZX250-3, ZX300-3, ZX330-3, ZX350-3, selected John Deere 75D, 85D, 120D, 135D, 160DLC, 200D/200DLC, 240DLC, 350DLC only when the original monitor number matches

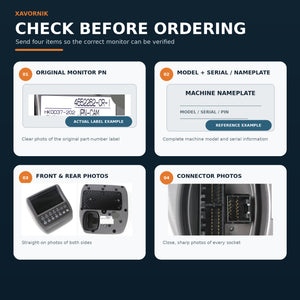

Check Before Ordering

Original monitor part number
Complete machine model
Machine serial/nameplate

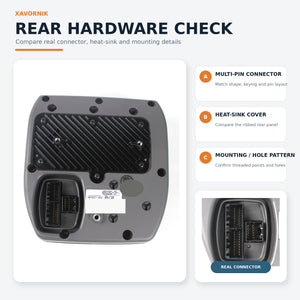

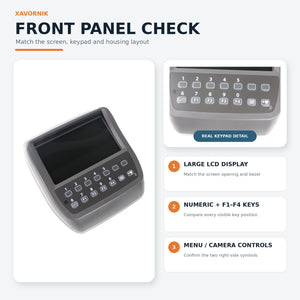

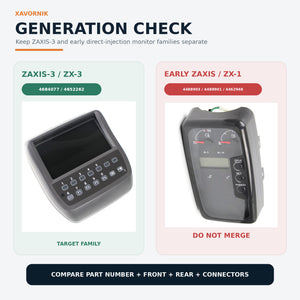

Clear front/rear/connector photos. Confirm ZAXIS-3 display family; do not identify by excavator model alone

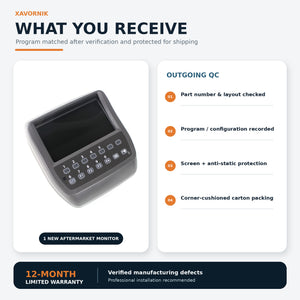

Package Information

Included: 1 new aftermarket monitor display with program matched to the confirmed application.
Not included: Machine ECU, harness, sensors, camera, brackets, mounting hardware and installation tools unless pictured.

Order & Fitment Confirmation

You may place the order before final fitment confirmation. After checkout, our team will contact you to verify the required information. Fulfillment will remain on hold and will not be released until compatibility is confirmed.

BEFORE ORDERING

Help us verify the right part

Model lists are references only. Different configurations may use different parts.

Original or reference part number
Complete engine model, including suffix
Machine make and model
Equipment serial number, VIN or PIN where applicable
Clear photo of the original part label or data plate
Clear photos of the original part and gasket layout where applicable

Installation & return notice

This product is covered by a 12-month limited warranty from the date of delivery. The warranty covers confirmed manufacturing defects under normal use. Returns and warranty claims are subject to the XAVORNIK Returns & Refund Policy.

Damage caused by incorrect machine information, improper installation, short circuits, damaged connectors or wiring, external electrical faults, unauthorized disassembly, water ingress, impact or modification is not covered.

Frequently asked questions

How do I confirm fitment?

Match the original part number, the relevant engine or machine model, and any required serial information. Compare the product dimensions, mounting points and other fitment details shown on the product page. Contact XAVORNIK before ordering if you are unsure.

What should be checked before installation?

Inspect the product for damage and confirm that the supplied components and physical configuration match your application. Follow the product-specific instructions and the relevant installation specifications. Do not install a damaged or incompatible product.

What does the warranty cover?

12-Month Limited Warranty

The limited warranty covers confirmed manufacturing defects. Normal installation or use does not, by itself, cancel the right to submit a manufacturing-defect claim.

See our Return, Refund and Limited Warranty Policy for warranty periods, coverage, exclusions and claim procedures. The limited warranty is separate from the 30-day non-defective return request window.
