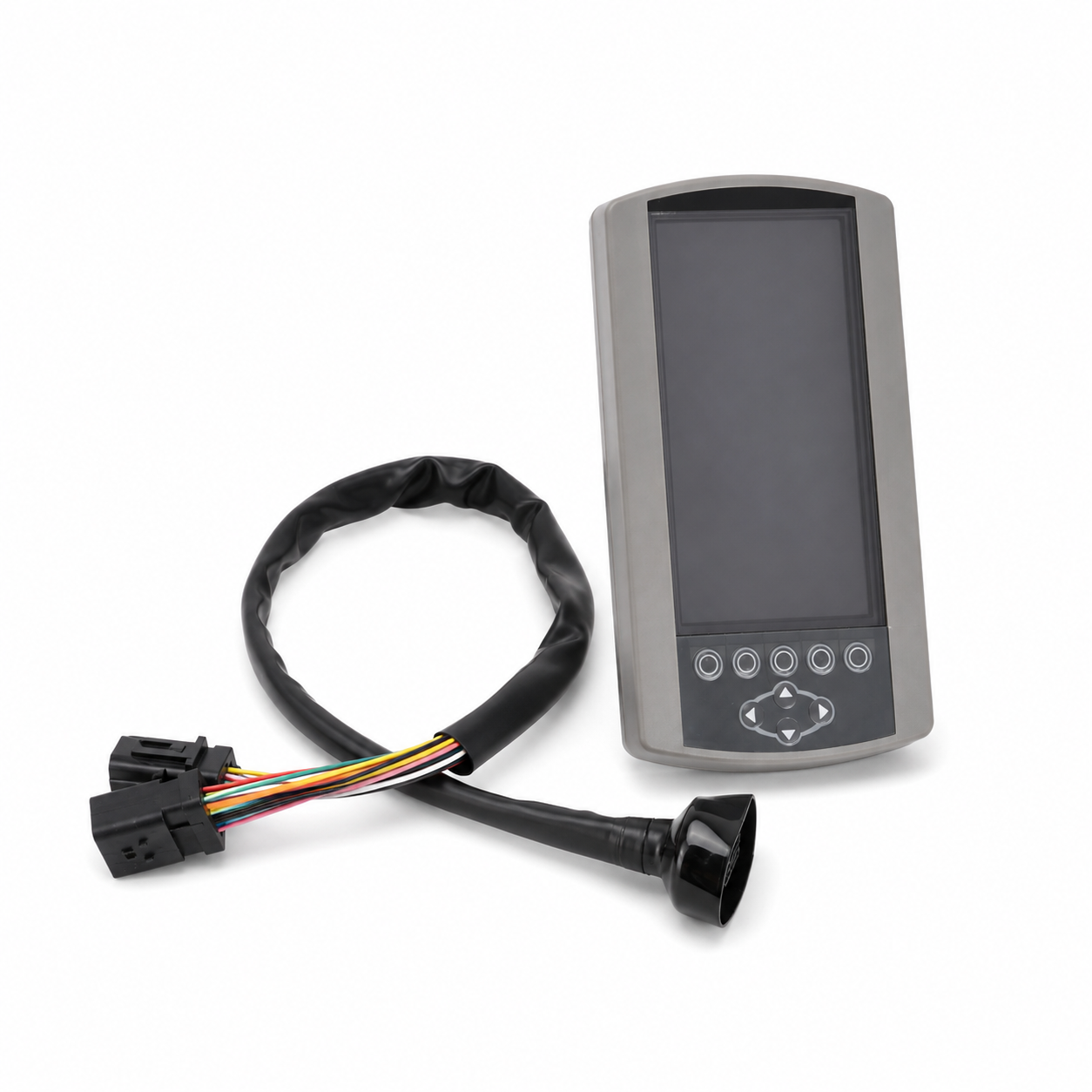

Programmed Excavator Monitor

309-5711 515-3302 525-1721 484-8026 500-9171 Monitor for CAT 320D2 336D2 336E

$1,529.00
Item price$1,529.00
US DDP shipping$72.99
Estimated delivered total$1,601.99

Duties included. Taxes, if applicable, are calculated at checkout. Final amount is confirmed at checkout.

New aftermarket A400 monitor/control group for select Caterpillar excavators and forestry equipment. Reference numbers include 309-5711, 515-3302, 525-1721, 484-8026 and 500-9171. Programming is included after fitment information is verified. Match the original part number, front panel, rear housing and connectors before ordering.

12-Month WarrantySupport after delivery
Fitment VerificationPart number & machine details
Worldwide ShippingOptions at checkout or quote

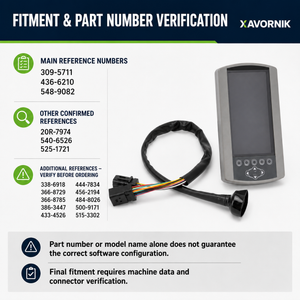

Reference part number
309-5711, 436-6210, 548-9082, 20R-7974, 540-6526, 525-1721, 338-6918, 366-8729, 366-8785, 386-3447, 433-4526, 444-7834, 456-2194, 484-8026, 500-9171, 515-3302
XAVORNIK SKU
MON-CAT-D2E-A400-PGM

Handling: 3-7 Business Days

Verified product data

Fitment & package details

Machine models
320D2, 320D2 L, 320D2 FM, 336D2, 349E L, 538, 568 FM, 568 FM LL, 312E, 312E L, 312F, 313F, 313F L, 313F LGC, 314E CR, 314F CR, 315F LCR, 316E L, 316F L, 318E L, 320E, 320E L, 320E LN, 320E LRR, 320E RR, 320F L, 323E, 323E L, 323E LN, 323E SA, 323F L, 323F SA, 324E, 324E L, 325F, 325F LCR, 326D2 L, 326F, 326F L, 326F LN, 329D2, 329D2 L, 329E, 329E L, 329E LN, 330D2, 330D2 L, 330F, 330F L, 330F LN, 335F, 336D2 L, 336D2 GC, 336D2 L XE, 336E, 336E L, 336E LN, 336E H, 336E LH, 336F, 340F, 349D2 L, 349E, 349F, 349F LXE, 352F, 374F L, 390F, 390F L, M314F, M315D2, M316F, M317, M317D2, M318F, M320, M320D2, M320F, M322F, M323F, MH3024, MH3026
Engine models
Varies by machine PIN/serial and machine configuration
Condition
New aftermarket replacement
Package
1
Product information

Product details

```html

Product Overview

New aftermarket A400 monitor and control display for select Caterpillar excavators and forestry equipment. This listing includes one monitor. The listed part numbers are identification and cross-reference numbers, not the package quantity.

Programming is included after the original part number, machine information and physical configuration have been verified.

Reference Part Numbers

  • 309-5711
  • 515-3302
  • 525-1721
  • 484-8026
  • 500-9171

These reference numbers may represent different production dates, software configurations or machine arrangements. Do not determine compatibility from a reference number or machine model alone.

Reference Applications

Reference Number Reference Applications
309-5711 320D2, 320D2 L, 320D2 FM, 336D2, 349E L, 538, 568 FM and 568 FM LL
525-1721 336D2, 336E H, 336E LH, 336E LNH, 349F L, 352F-VG, 538, 548, 558, 568 FM and 568 FM LL
484-8026 320D2 FM, 568 FM and 568 FM LL
515-3302 Cross-reference number for selected A400 monitor applications. Exact fitment must be verified using the original label, machine serial number, housing and connectors.
500-9171 Cross-reference number for selected A400 monitor applications. Exact fitment must be verified using the original label, machine serial number, housing and connectors.

Important: The application table combines the reference coverage of the individual part numbers. It does not mean that every listed part number fits every listed machine.

Fitment Verification Required

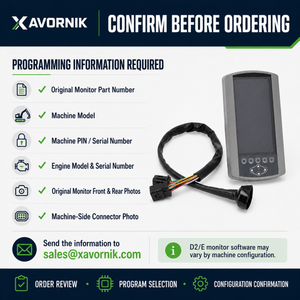

Please provide the following information before ordering:

  • Original monitor part number
  • Complete machine model
  • Machine serial number or PIN
  • Engine serial number, if available
  • Clear photo of the complete front display
  • Clear photo of the rear housing and identification label
  • Clear photos of all rear and side connectors

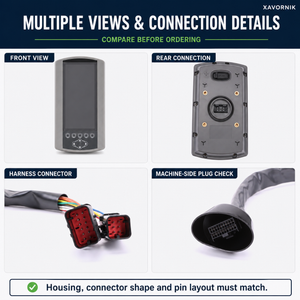

The front display layout, mounting points, rear housing, connector quantity, connector keying and pin arrangement must match the original monitor.

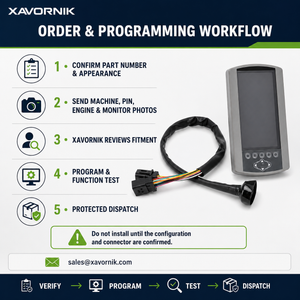

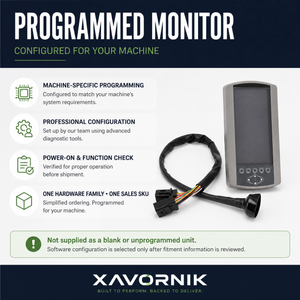

Programming

The listed price includes programming based on the verified machine information supplied by the customer. Programming begins only after all required fitment information has been reviewed and accepted.

Estimated processing time is 2–3 business days after the fitment and programming information has been verified. Incorrect or incomplete machine information may delay processing or result in an incompatible configuration.

Package Includes

  • 1 × New aftermarket A400 monitor/control group
  • Programming based on verified machine information

Not Included

  • Wiring harness
  • Mounting bracket or mounting hardware
  • Sensors or external control modules
  • Installation labor

Installation

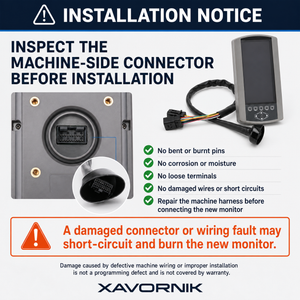

Professional installation and electrical-system inspection are strongly recommended. Check the machine voltage, wiring harness, connector condition, grounds and related control modules before installing the replacement monitor.

Do not connect the monitor to damaged wiring, bent pins, loose terminals or a system with an unresolved short circuit. External electrical faults may damage the replacement unit.

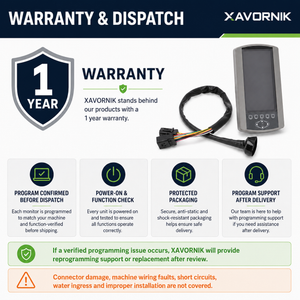

Warranty

12-Month Limited Warranty

The warranty covers confirmed manufacturing defects under normal use. Damage caused by incorrect fitment information, improper installation, short circuits, damaged connectors or wiring, external electrical faults, unauthorized disassembly, water ingress, impact or modification is not covered.

This item is programmed specifically for the verified machine information supplied by the customer. Damage or incompatibility caused by incorrect or incomplete machine information is not covered.

Returns and warranty claims are subject to the XAVORNIK Returns & Refund Policy.

Trademark Notice

XAVORNIK is not affiliated with Caterpillar Inc. Caterpillar and machine model names are used only to identify product compatibility.
