Monitor 7835-12-1013 7835-12-1014 7835-12-1001 for Komatsu PC200-7 PC210-7 PC240-7 PC300-7

XAVORNIK Programmed Monitor for Selected Komatsu PC-7 Excavators

This new aftermarket monitor assembly is designed for selected Komatsu PC-7 excavator configurations using the matching monitor housing, mounting pattern, rear connector layout and compatible software configuration.

The monitor is programmed after the original monitor reference number and complete machine model have been confirmed. Multiple reference numbers may share the same physical monitor platform, but the reference number and machine application should still be checked before ordering.

Condition: Aftermarket New

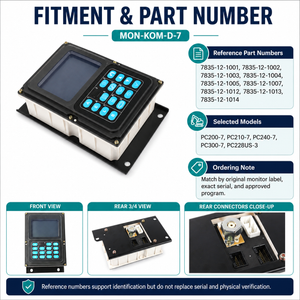

Reference Part Numbers

This monitor may be identified by one of the following reference numbers:

• 7835-12-1001
• 7835-12-1002
• 7835-12-1003
• 7835-12-1004
• 7835-12-1005
• 7835-12-1007
• 7835-12-1012
• 7835-12-1013
• 7835-12-1014

Important: These numbers are provided for product identification and fitment review. They should not be treated as unconditional supersessions for every machine configuration.

Selected Applications

Designed for selected configurations of the following excavator models:

• PC200-7
• PC210-7
• PC240-7
• PC300-7
• PC228US-3

The same machine model can use different monitors depending on production range and configuration. Confirm the original monitor reference number and complete machine model before purchase.

Not intended for the PC-8 7835-30 / 7835-31 monitor family.

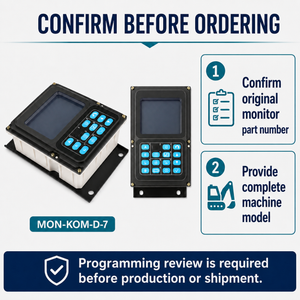

Programming and Fitment Confirmation

The monitor is supplied with a matched software configuration after the application has been confirmed.

For most orders, please provide:

1. The complete part number from the original monitor
2. The complete excavator model

If the configuration cannot be confirmed from these two items, we may additionally request the machine serial number or clear photos of the original monitor and rear connectors.

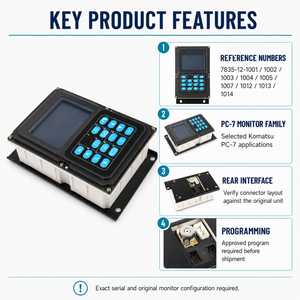

Product Features

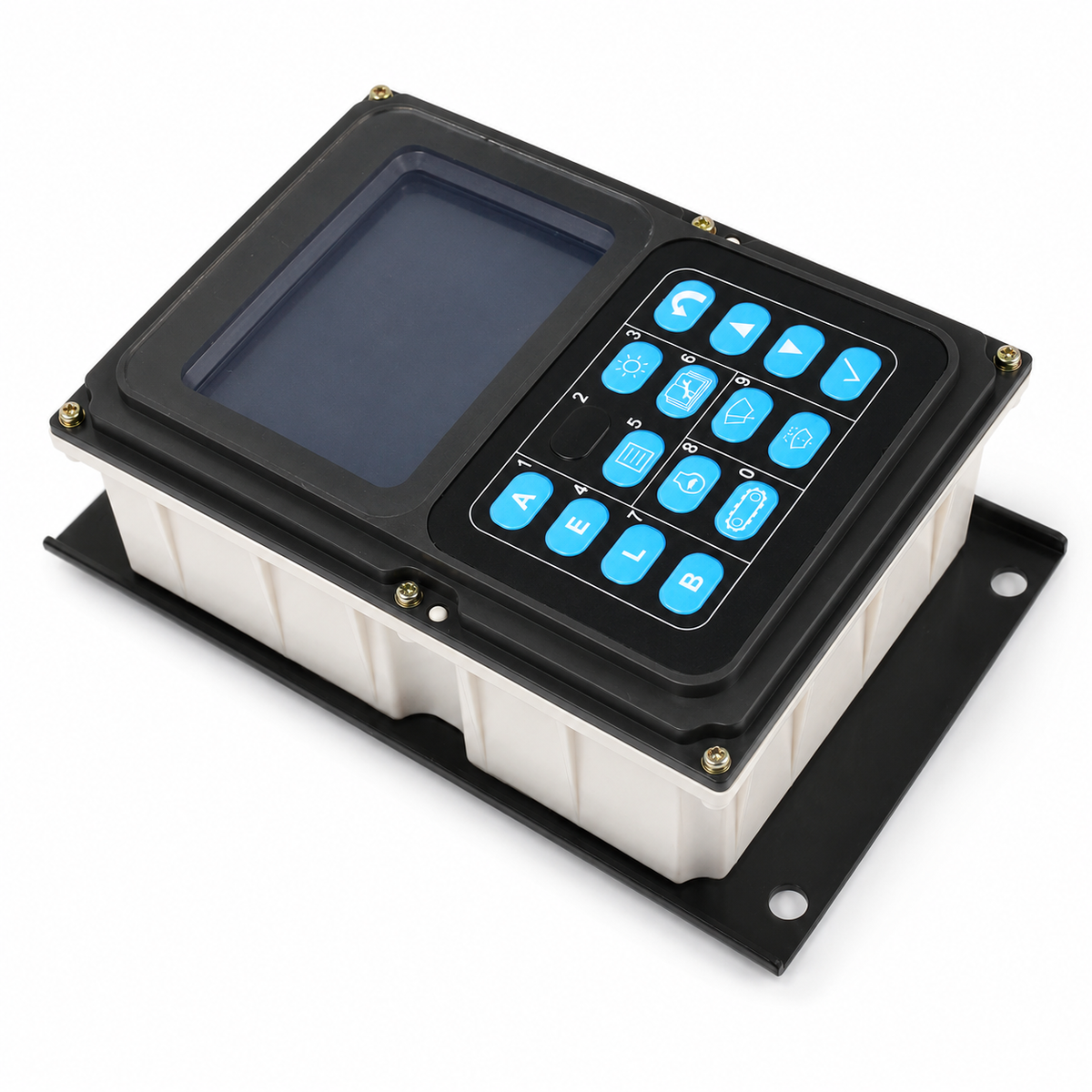

• New aftermarket excavator monitor assembly
• Designed for selected Komatsu PC-7 monitor applications
• Supports multiple related 7835-12 reference numbers
• Matched software configuration prepared before shipment
• Integrated display and operator-control keypad

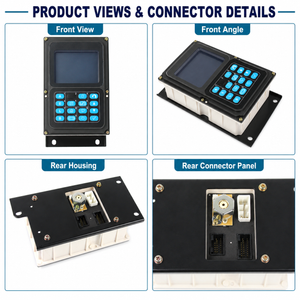

• Rear multi-connector interface as shown in the product images
• Rigid mounting plate and molded polymer housing

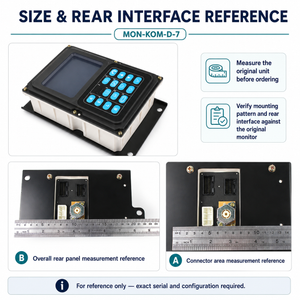

Compare Before Ordering

Please compare the following details with the original monitor installed on your machine:

• Overall housing shape and dimensions
• Front display and keypad layout
• Mounting plate and mounting-hole positions
• Rear connector quantity, shape and position
• Original monitor part number

Appearance alone is not sufficient to confirm compatibility. The original part number and machine model should match the confirmed application before shipment.

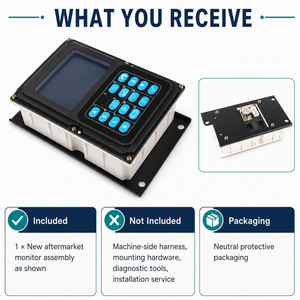

Package Includes

• 1 × New aftermarket programmed monitor assembly

Not Included

• Machine-side wiring harness
• Additional connectors or adapter harnesses
• Mounting hardware unless specifically pictured
• Diagnostic tools
• Installation labor or on-site programming service

Packaging

The monitor is supplied in neutral protective packaging. The protection is arranged to reduce movement and impact during transportation.

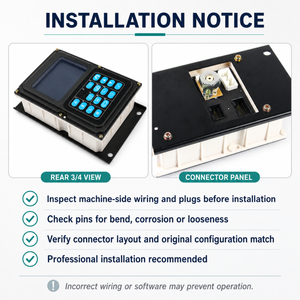

Installation Notice

Professional installation is recommended. Before connecting the replacement monitor:

• Disconnect machine battery power
• Inspect the machine-side wiring and plugs
• Check connector pins for bending, corrosion or looseness
• Verify that the connector layout matches the original monitor
• Repair any wiring short circuit or damaged terminal before installation

Incorrect wiring, damaged connectors or an incorrect software configuration may prevent operation or damage the replacement monitor.

Fitment Assistance

For fitment confirmation, send the original monitor part number and complete machine model to sales@xavornik.com before ordering.

XAVORNIK is an independent aftermarket replacement-parts brand. Manufacturer names, equipment models and part numbers are used only to identify compatibility.
