21Q6-33400 21Q6-30103 21Q6-30104 21Q6-30105 Monitor for Hyundai R210LC-9 R220LC-9

XAVORNIK Monitor Cluster for Selected Hyundai R-9 Excavators

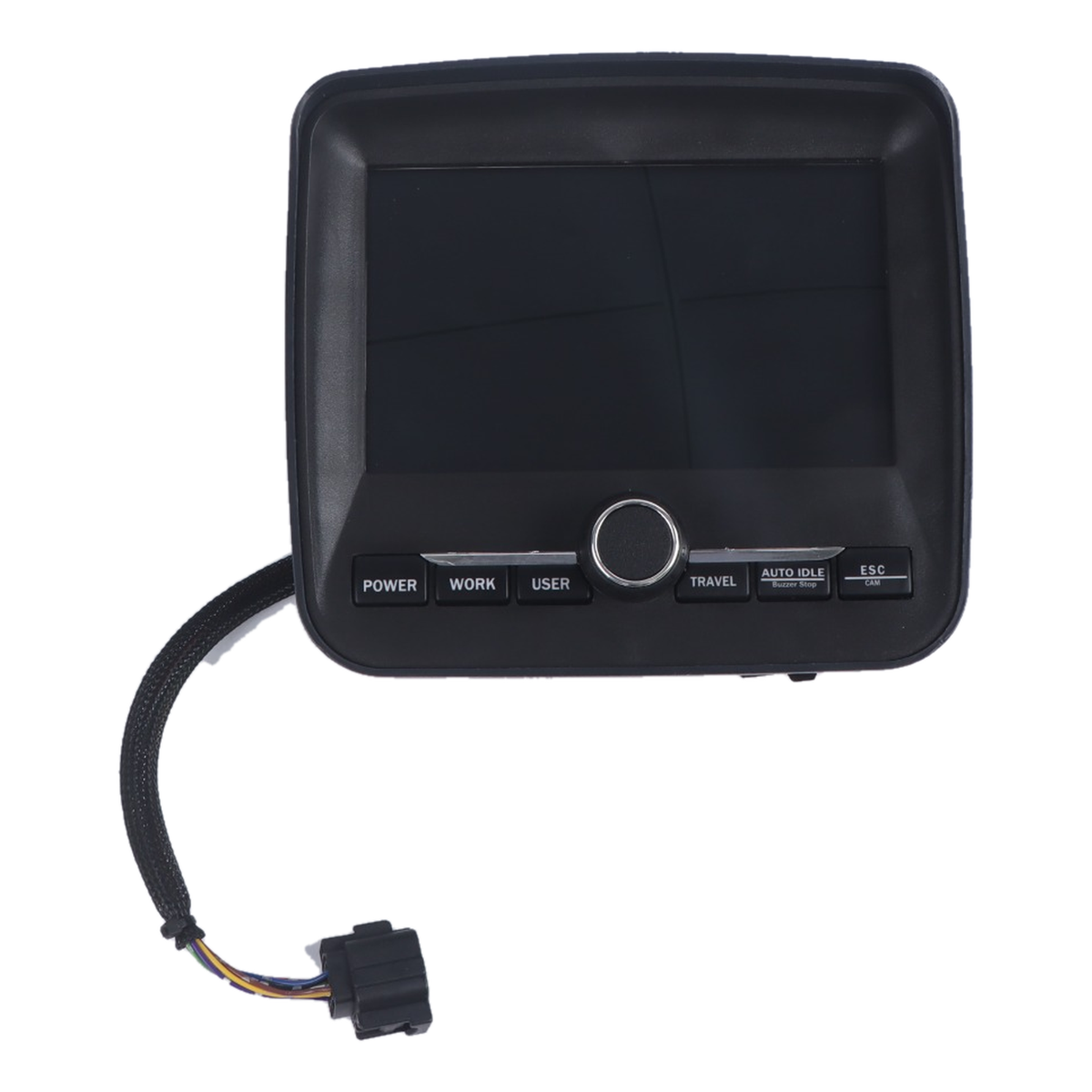

This new aftermarket monitor cluster is designed for selected Hyundai R-9 and R-9S excavator configurations using one of the following original monitor reference numbers: 21Q6-33400, 21Q6-30103, 21Q6-30104 or 21Q6-30105.

Several Hyundai R-9 monitor versions can look similar while using different configurations, connector arrangements or machine applications. Confirm the complete part number printed on the original monitor label and the complete machine model before ordering.

Condition: Aftermarket New

Reference Part Numbers

• 21Q6-33400
• 21Q6-30103
• 21Q6-30104
• 21Q6-30105

Important: These reference numbers support product identification but do not guarantee fitment across every Hyundai R-9 machine configuration. Always verify the original monitor label, complete machine model, housing, control layout, mounting arrangement and connector before purchase.

Selected Common Applications

This monitor family is commonly referenced for selected configurations of the following Hyundai excavators:

• R140LC-9
• R140LC-9S
• R160LC-9
• R160LC-9S
• R180LC-9
• R180LC-9S
• R210LC-9
• R220LC-9S
• R250LC-9
• R300LC-9S
• R320LC-9
• R330LC-9S
• R480LC-9
• R520LC-9S

The model list is provided as a fitment reference only. The complete model suffix is important. For example, an R-9, R-9A and R-9S machine may not use the same monitor configuration.

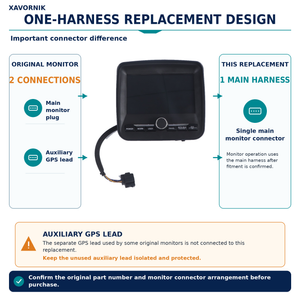

One-Harness Replacement Design

Some original Hyundai R-9 monitor assemblies use two separate connections:

• A main monitor connector
• A separate auxiliary GPS lead

This replacement monitor uses one integrated main harness. For a verified compatible machine, connect the replacement monitor to the machine-side main monitor plug.

The separate auxiliary GPS lead used by some original monitors is not connected to this replacement monitor. Keep any unused auxiliary lead isolated, dry and protected from contact with metal or other electrical terminals.

The one-harness design does not independently confirm compatibility. The original monitor reference number, complete machine model and main connector arrangement must still be verified.

Confirm Before Ordering

For standard fitment confirmation, please provide:

1. Original monitor part number
   Confirm that the original label shows 21Q6-33400, 21Q6-30103, 21Q6-30104 or 21Q6-30105.
2. Complete machine model
   Include the full model suffix, such as R220LC-9S rather than only R220.

If the application cannot be confirmed from these two items, we may additionally request:

• Machine serial number
• Front photo of the original monitor
• Rear housing and mounting-area photo
• Main connector and pin-layout photo

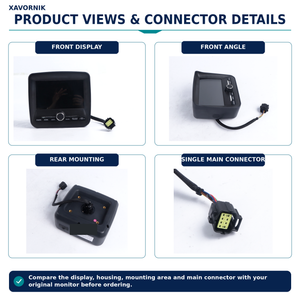

Physical Comparison Checklist

Compare the following details with the original monitor installed on the machine:

• Overall front housing shape
• LCD display position and size
• Rotary control-knob position
• Function-key quantity and arrangement
• Rear mounting structure
• Main connector shape and pin layout
• Harness length and wire arrangement

Do not order only because the exterior looks similar. Different Hyundai R-9 monitor versions may have similar housings but different configurations or connector arrangements.

Product Features

• New aftermarket excavator monitor cluster
• Dedicated to reference numbers 21Q6-33400, 21Q6-30103, 21Q6-30104 and 21Q6-30105
• Designed for selected Hyundai R-9 and R-9S excavator configurations
• Integrated LCD display
• Rotary control knob and physical function keys
• Integrated single main wiring harness
• Molded polymer housing
• Configuration reviewed after machine information is confirmed

Package Includes

• 1 × New aftermarket monitor cluster assembly
• 1 × Integrated main harness attached to the monitor

Not Included

• Machine-side wiring harness
• Auxiliary GPS antenna or GPS lead
• Additional adapter harnesses
• Mounting hardware unless specifically pictured
• Diagnostic tools
• Installation labor

Packaging

The monitor is supplied in neutral protective packaging with shock-resistant protection. Packaging appearance may vary while maintaining appropriate protection during transportation.

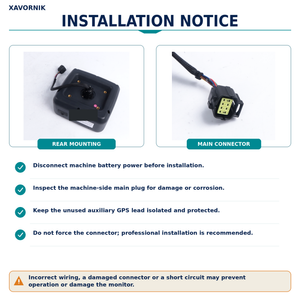

Installation Notice

Professional installation is recommended. Before connecting the replacement monitor:

• Disconnect machine battery power
• Inspect the machine-side main connector for damage or corrosion
• Check connector pins for bending, looseness or burnt marks
• Verify that the connector shape and pin layout match
• Repair damaged wiring or short circuits before installation
• Keep any unused auxiliary GPS lead isolated and protected
• Do not force the connector into the replacement monitor

Incorrect wiring, damaged connectors, short circuits or an incorrect machine application may prevent operation or damage the replacement monitor.

1-Year Limited Warranty

This product includes a 1-year limited warranty covering verified manufacturing defects under normal use.

The warranty does not cover damage caused by incorrect fitment, improper installation, damaged wiring, short circuits, forced connectors, water ingress, impact, disassembly, unauthorized repair or incorrect customer-supplied machine information.

Fitment Assistance

For fitment confirmation, send the original monitor part number and complete machine model to:

sales@xavornik.com

XAVORNIK is an independent aftermarket replacement-parts brand. Manufacturer names, machine models and part numbers are used only to identify compatibility.
