386-3457 327-7482 450-0714 Excavator Monitor for CAT Caterpillar 312D 319D 320D 330D

386-3457 Operator Monitor for Selected CAT D-Series Excavators

This new XAVORNIK aftermarket operator monitor is referenced to part numbers 386-3457, 327-7482 and 450-0714. It is designed for selected CAT D-series excavators using the matching monitor housing, connectors, pin configuration and electrical system.

This monitor displays important machine operating information. Compatibility must be confirmed from the original monitor and machine configuration before ordering.

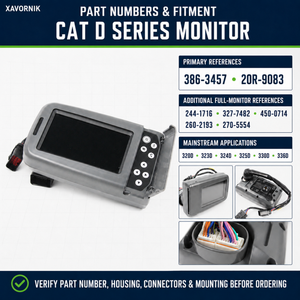

Reference Numbers

386-3457, 327-7482, 450-0714

These part numbers are provided for product identification and cross-reference searches. A reference number or machine model alone does not guarantee compatibility. Always compare the complete original monitor number and physical configuration.

Typical Excavator Applications

• CAT 312D and 312D L
• CAT 319D, 319D L and 319D LN
• CAT 320D, 320D L, 320D LN, 320D LRR, 320D GC, 320D FM and 320D RR
• CAT 323D, 323D L, 323D LN and 323D SA
• CAT 324D, 324D L, 324D LN and selected 324D FM configurations
• CAT 325D, 325D L and selected 325D FM or MH configurations
• CAT 328D LCR
• CAT 329D, 329D L and 329D LN
• CAT 330D, 330D L, 330D LN and selected 330D MH or FM configurations
• CAT 336D, 336D L and 336D LN

Additional catalog applications may include selected 311D LRR, 313D, 315D L, 318D, 326D L, 340D, 345D, 349D, M330D and M325D material-handling configurations. These applications require confirmation from the original monitor number and machine serial number.

Monitor Configuration

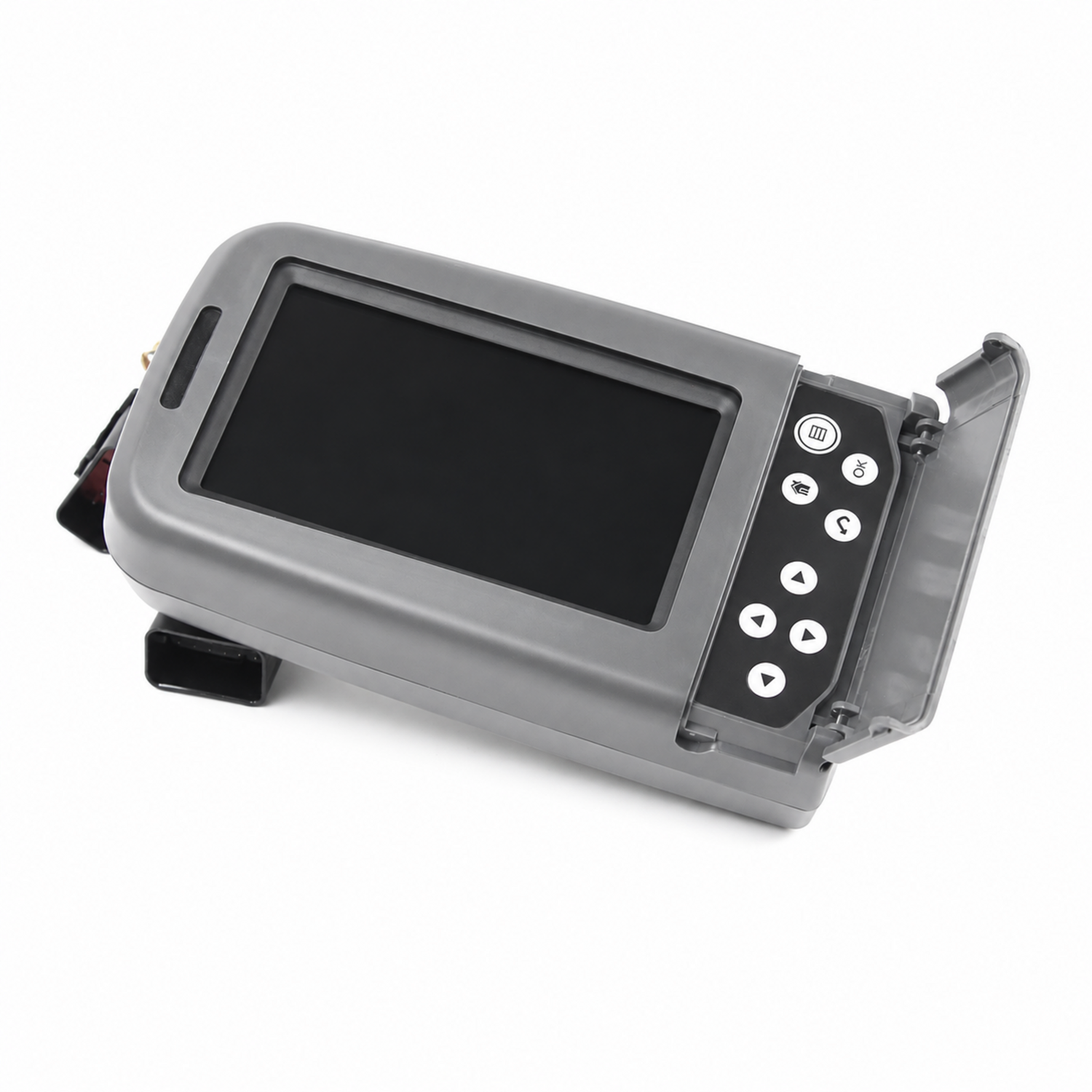

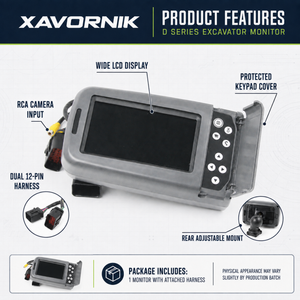

• Gray horizontal operator monitor housing
• ABS-style monitor casing
• Attached pigtail harness

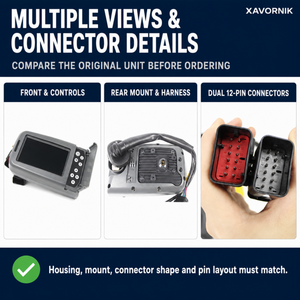

• Two 12-pin electrical connectors
• RCA camera connection
• Operating system designed for selected 18–32V machine applications

The connector keying, pin arrangement, wiring, rear bracket and button layout must match the original monitor. Similar-looking monitors may use different wiring or communication protocols.

Required Fitment Check

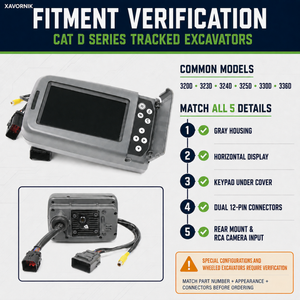

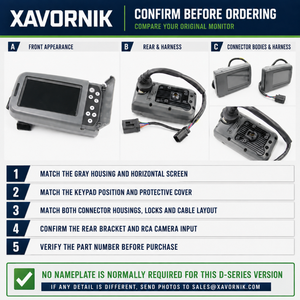

Before ordering, compare all of the following:

• Complete part number on the original monitor
• Machine model and serial number or Product Identification Number
• Front screen shape and gray housing
• Button quantity, symbols and layout
• Two 12-pin connectors and connector keying
• Pin positions and machine-side wiring
• RCA camera connector
• Rear mounting bracket and mounting points
• Operating voltage and communication system

If the original part number is missing or unreadable, send clear photos of the front panel, rear housing, connectors, mounting bracket and machine information plate before ordering.

Package Contents

• 1 x New aftermarket operator monitor assembly

Only the components shown in the product photos are included. Additional wiring, mounting hardware, camera cables and brackets are not included unless specifically pictured or stated.

Installation Information

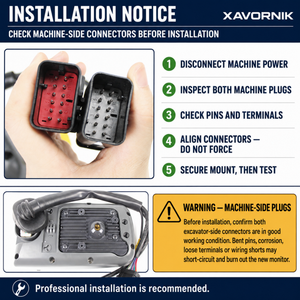

Disconnect the machine power supply before installation. Inspect the equipment-side connectors, terminals and wiring harness for bent pins, corrosion, loose terminals, water damage or short circuits. A damaged machine-side harness may damage the replacement monitor.

Professional installation is recommended. Depending on the machine serial number and configuration, initialization, calibration or software matching may be required. Do not assume plug-and-play compatibility from the machine model alone.

Warranty

This aftermarket monitor is covered by the XAVORNIK 12-month limited warranty against manufacturing defects. Damage caused by incorrect wiring, short circuits, water ingress, impact, unauthorized disassembly or improper installation is not covered.

XAVORNIK is an independent aftermarket brand and is not affiliated with Caterpillar Inc. CAT and Caterpillar are trademarks of their respective owner and are used only to identify product compatibility.
