338-6918 366-8729 366-8785 386-3447 433-4526 444-7834 456-2194 Monitor for CAT 320D2 320E 324E 336E 568 FM | XAVORNIK

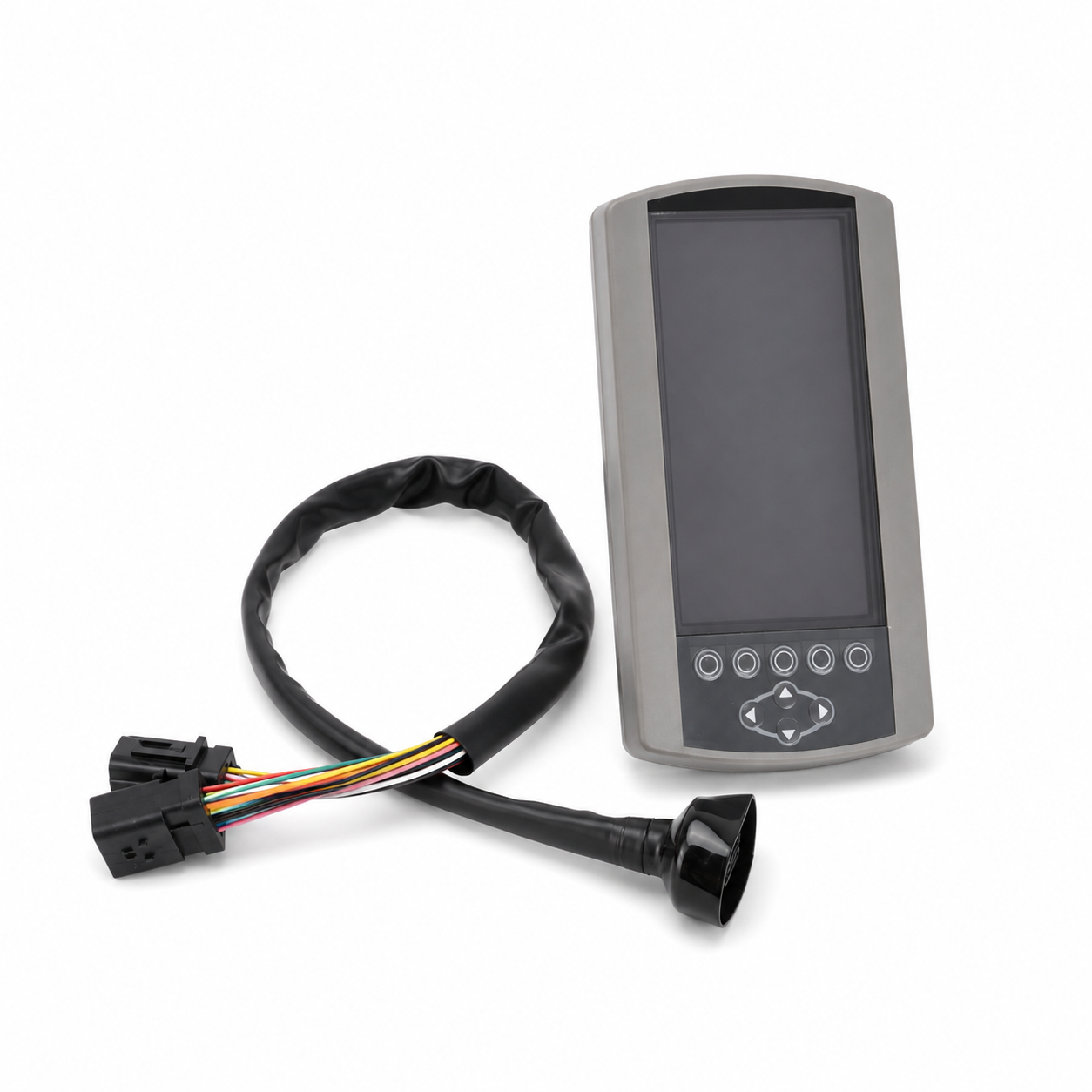

New aftermarket replacement operator monitor/control group for selected CAT D2- and E-series excavator and forestry-machine applications.

This listing covers selected monitor references including 338-6918, 366-8729, 366-8785, 386-3447, 433-4526, 444-7834 and 456-2194. Programming is included after the machine and original monitor information has been verified.

Reference Part Numbers

• 338-6918
• 366-8729
• 366-8785
• 386-3447
• 433-4526
• 444-7834
• 456-2194

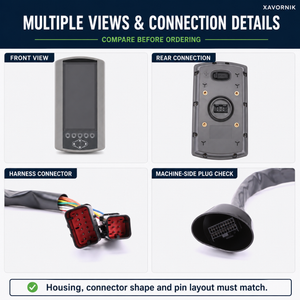

These numbers are provided for identification and cross-reference searches. A matching reference number does not by itself confirm compatibility. Always compare the original monitor label, front display and button layout, rear housing, connectors and mounting points.

Part Number and Catalog Notes

Selected Reference Applications

• CAT 320D2, 320D2 L and 320D2 FM
• CAT 320E, 320E L, 320E LN and 320E LRR
• CAT 324E and 324E L
• CAT 329E L and 329E LN
• CAT 336E, 336E L and 336E LN
• CAT 349E L and 349E L VG
• CAT 568 FM and 568 FM LL

Important: The model list represents combined catalog and cross-reference coverage. It does not mean that every listed part number is compatible with every listed machine. Compatibility can vary by machine PIN, production date, cab configuration, monitor hardware and software version.

Engine references found across selected applications may include C6.6, C7.1, C9.3 and C13. The engine model must only be used as supporting information and cannot confirm monitor compatibility by itself.

Information Required Before Production

Please provide all of the following information after placing the order:

• The complete original monitor part number
• The machine model
• The complete machine serial number or Product Identification Number (PIN)
• A clear front photo showing the LCD, indicator areas and all buttons
• A clear rear photo showing the housing, label and mounting points
• Clear close-up photos of every electrical connector

Production will not begin until the fitment information has been reviewed and approved.

Programming

• Programming is included in the product price.
• The monitor will be prepared according to the verified machine and original monitor information.
• Normal processing time is 2–3 business days after verification.
• Additional machine-side setup, parameter confirmation or calibration may be required after installation.

Package Contents

• 1 × programmed aftermarket operator monitor/control group

Wiring harnesses, mounting brackets, sensors, converters, installation hardware and diagnostic tools are not included unless clearly shown in the product photos.

Installation

Professional installation by a qualified heavy-equipment technician is strongly recommended. Check machine voltage, wiring condition, grounds and communication circuits before connecting the replacement monitor. Incorrect wiring, unstable voltage or short circuits may damage electronic components.

Warranty

This product includes a 12-month limited warranty covering verified manufacturing defects under normal use. The warranty does not cover incorrect ordering, inaccurate machine information, improper installation, wiring or voltage faults, liquid damage, impact damage, fire damage, unauthorized disassembly or modification.

Return Restriction

This is a programmed electronic product prepared according to the information supplied by the customer. Returns are not accepted for ordering errors, incorrect part numbers, incorrect machine information or unverified fitment. If a product defect is suspected, contact us before removal or return and provide photos, video and diagnostic information for review.

Trademark Notice

Caterpillar and CAT are trademarks of Caterpillar Inc. XAVORNIK is not affiliated with, sponsored by or endorsed by Caterpillar Inc. Part numbers, model names and trademarks are used only for identification and compatibility-reference purposes.
