XAVORNIK 20R-9083 244-1716 260-2193 Monitor for CAT Caterpillar 323D 324D 325D 330D

20R-9083 244-1716 260-2193 Operator Monitor for Selected CAT D-Series Excavators

This new XAVORNIK aftermarket operator monitor is referenced to part numbers 20R-9083, 244-1716 and 260-2193. It is intended for selected CAT D-series excavators using the matching monitor housing, electrical connectors, pin configuration, mounting structure and machine communication system.

The product sold in this listing is a new aftermarket replacement. It is not a genuine CAT product, used monitor or CAT Reman unit.

Reference Numbers

20R-9083, 244-1716, 260-2193

These numbers are provided for product identification and cross-reference searches. They should not be treated as an unconditional interchange chain. The complete original monitor number and physical configuration must be verified before ordering.

Part Number Information

• 20R-9083: CAT Reman operator monitor reference officially shown as an alternative to monitor number 386-3457.
• 244-1716: Discontinued CAT display assembly reference covering selected excavators and other heavy-equipment configurations.
• 260-2193: Discontinued CAT monitor group reference covering selected excavators, material handlers and related configurations.

Public parts information does not establish that 244-1716 and 260-2193 automatically interchange with 20R-9083 in every application. Physical and electrical verification is required.

Core Excavator Applications

Typical overlapping applications within this reference-number group include:

• CAT 323D and selected 323D L configurations
• CAT 324D and selected 324D L configurations
• CAT 325D and selected 325D L configurations
• CAT 330D and selected 330D L configurations

The base machine model does not confirm compatibility. Coverage varies according to machine serial number, monitor number, wiring, installed options and regional configuration.

Additional 20R-9083 Applications

The CAT catalog lists 20R-9083 for selected configurations of the following machines:

• 312D, 312D L
• 319D L and 319D LN
• 320D, 320D L, 320D LN, 320D LRR, 320D GC, 320D FM and 320D RR
• 323D and 323D L
• 324D, 324D L and 324D LN
• 325D and 325D L
• 328D LCR
• 329D, 329D L and 329D LN
• 330D, 330D L, 330D LN and 330D MH
• 336D, 336D L and 336D LN
• Selected 340D, 345D, 349D, 365C, 374D, 385C and 390D configurations
• Selected M330D wheeled excavators and M325D material handlers

Additional 244-1716 Applications

The CAT catalog lists 244-1716 for selected configurations including:

• 320D and 320D L
• 323D S, 323D SA, 323D L and 323D LN
• 324D and 324D L
• 325D and 325D L
• 329D and 329D L
• 330D and 330D L
• 336D and 336D L
• Selected 345C, 345D, 365C and 385C excavators

CAT also lists 244-1716 for selected motor graders, track-type tractors, compactors and the 613G scraper. These additional equipment types are not presented as confirmed applications for this aftermarket monitor. Contact XAVORNIK and compare the original monitor before ordering.

Additional 260-2193 Applications

The CAT catalog lists 260-2193 for selected configurations including:

• 323D L
• 324D, 324D L and 324D LN
• 325D and 325D L
• 329D L
• 330D L, 330D LN and 330D MH
• Selected 345C, 345D, 365C and 385C excavators
• Selected M325D material handlers and M330D wheeled excavators

Monitor Configuration

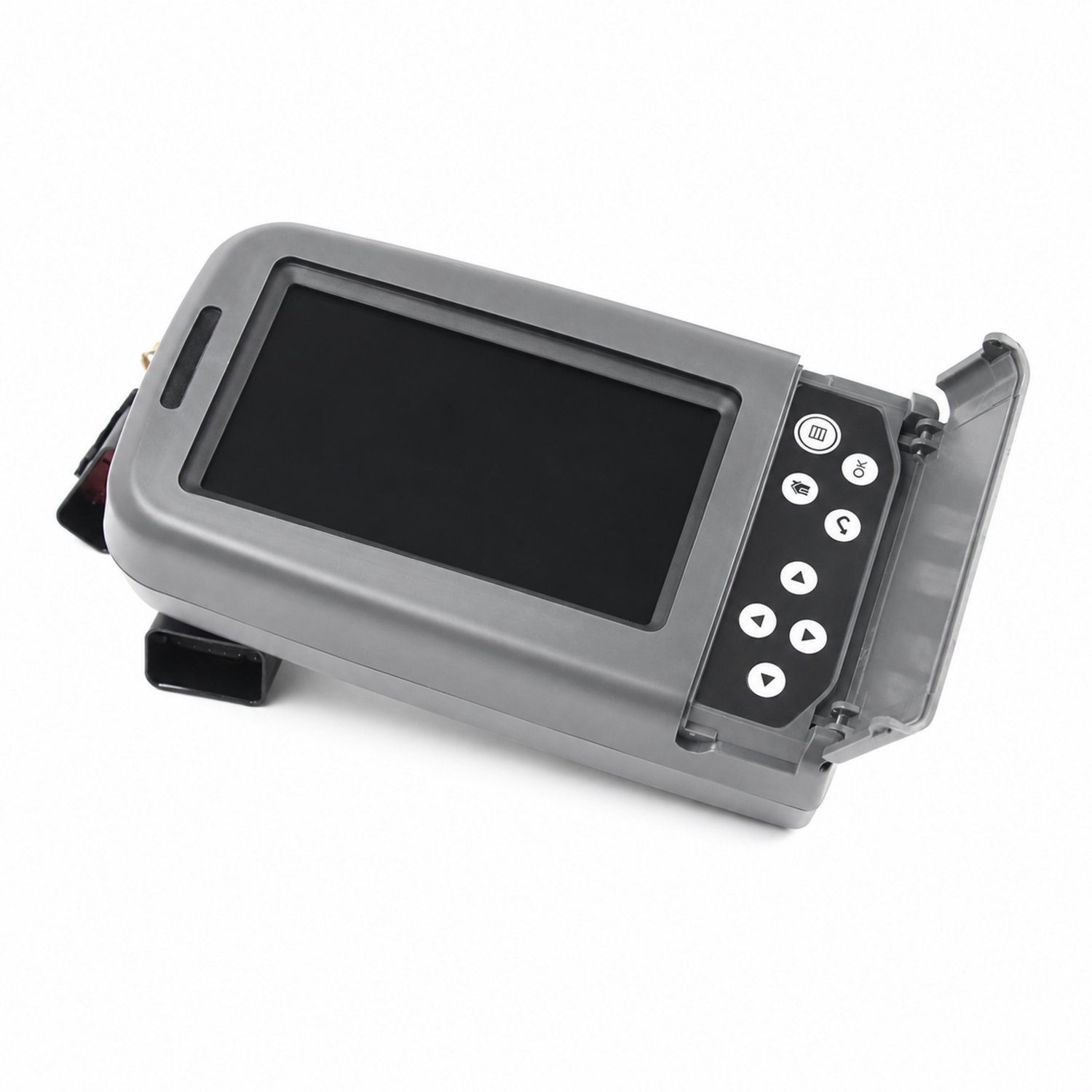

• Gray horizontal operator monitor housing
• Attached pigtail wiring harness
• Two 12-pin electrical connectors
• RCA camera connection
• Configuration intended for selected 18–32V machine systems

The connector keying, pin arrangement, wiring, button layout, rear bracket and communication system must match the original monitor. Similar-looking displays may use different wiring or internal configurations.

Required Fitment Verification

Before ordering, compare all of the following:

• Complete part number on the original monitor
• Machine model and serial number or Product Identification Number
• Front screen style and gray horizontal housing
• Button quantity, symbols and layout
• Two 12-pin connectors and connector keying
• Connector pin positions and machine-side wiring
• RCA camera connector
• Rear bracket, mounting points and overall dimensions
• Machine operating voltage and communication system

If the original monitor number is missing or unreadable, send clear photos of the front panel, rear housing, connectors, wiring, mounting bracket and machine information plate to sales@xavornik.com before ordering.

Package Contents

• 1 x New XAVORNIK aftermarket operator monitor assembly

Only the components shown in the product photos are included. Additional wiring, mounting hardware, brackets and camera cables are not included unless specifically pictured or stated.

Installation Information

Disconnect the machine power supply before installation. Inspect the equipment-side connectors, terminals and wiring harness for bent pins, corrosion, water damage, loose terminals, damaged insulation or short circuits. A damaged machine-side electrical system may damage the replacement monitor.

Professional installation is recommended. Do not connect the monitor until the part number, connector configuration, pin arrangement and machine voltage have been confirmed.

Warranty

This XAVORNIK aftermarket monitor is covered by a 12-month limited warranty against manufacturing defects. Damage caused by incorrect wiring, short circuits, water ingress, impact, incorrect machine application, unauthorized disassembly or improper installation is not covered.

XAVORNIK is an independent aftermarket brand and is not affiliated with Caterpillar Inc. CAT and Caterpillar are trademarks of their respective owner and are used only to identify product compatibility.
